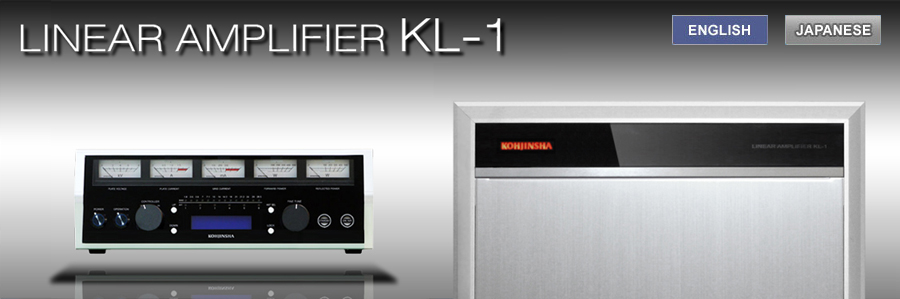

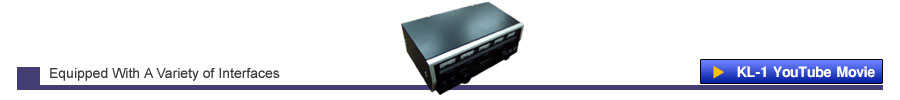

The KL-1 consists of a sophisticated and sturdy Main Unit and a Desk Top Controller with five meters (HV, IP, IG, FWD, and REF). The LCD displays BAND and ANTENNA CHANNEL allowing you continuous monitoring of the amplifiers. The 7 meter (23') Remote Control Cable allows for remote installation of the Main Unit, providing you a separation with the heat and noise associated with the Main Unit. ※See specitications.

Preset tuning makes it easy to QSY quickly from one band to another. You can preset up to 14 frequencies in ham bands . After you set channels, QSY is so easy and quick. You can move up and down between adjacent bands in less than a second. Maximum waiting time to move from 160m to 10m is 30 seconds. KL-1 should help your operation without stress. You can Preset up to 14 frequencies in Ham bands. Preset tuning provides quick frequency changes. Adjacent band changes are less than a second. Maximum time between 160m to 10m is 30 seconds.

RS232C	SteppIR interface	Antenna Switch
You can connect KL-1 with your transceiver via a serial interface. Verified compatible radios. [YAESU]　FTDX-9000,FTDX-5000,FT-2000, etc. [ICOM]　IC-7800,IC-7700,IC-760, etc. [KENWOOD]　TS-950,TS-2000,TS-590, etc. [JRC]　JST-145/245 [ELECRAFT]　K2,K3	KL-1 has a data output connector to send your transceiver frequency data directly to the SteppIR.	Remote Antenna Switch(option)6 way antenna switch coodinating with KL-1Accessary: 2m control cable Power Rating : 5KW Price:US$380
	USB interface
	The USB port on the Desk Top Controller provides computer interfacing.

Preset Tuning RF unit　（VVC,VL,and VR） Large-sized variable tank coil and servomotor drive   The tank circuit in RF unit and tube socket.

Power Supply Double core heavy duty transformer provides 100% duty cycle operation with full legal power, providing peace of mind in digital modes or long running contests. Custom made Electrolytic capacitor and ON/OFF delay circuit provides protection to the 3CX3000A7 and increases the robustness of the KL-1.   Power supply control and high voltage rectifier board.

Directional Through-line PEP Wattmeter		Control board in the RF unit
5KW Directional Through-line Wattmeter is equipped. You can measure and monitor the PEP output power. 2 power meters, FWD and REF provide a comfortable and reassuring operation. PEP circuit board	PEP circuit boord	Input tuning matrix circuit and transmit/receive control circuit

KL-1　Product Specifications
Power tube	3CX3000A7	Spurious emissions	Less than -50dB
Frequency presettabe channels	1.8〜2.0MHz , 3.5〜4.0MHz , 7.0〜7.3MHｚ (10〜10.15MHｚ) , 14.0〜14.35MHz , 18.068〜18.168MHｚ 21.0〜21.45MHｚ , 24.89〜24.99MHｚ , 28.0〜29.7MHｚ 14 presettable channels. 2 channels for 3.5, 7, 14 ,21 and 28MHz band. 1 channel for 1.8, 10, 18 and 24MHz band.	input connector	50Ω Unbalanced, BNC
		Output connector	50Ω Unbalanced, SO239
		Operating temp.	0℃〜+40℃ (32°F 〜 104°F)
		Control cable	7m(23') *optional 10m(32'), 20m(65')
Mode	CW, SSB, Digital	Dimension （Main Unit） （Controller）	478mmW X 800mm H X 564mmD without caster hight. (18"W X31"H X22"D) 320mmW X107mmH X167.5mmD case size (12"W X4"H X6"D)
Driving power	75W〜200W
AC input	200 , 220 , 230 , 240VAC Approx. 40Amps at 230VAC	Weight (Main Unit) （Controller）	106Kg(235lbs) 3.5Kg(7.8lbs)
