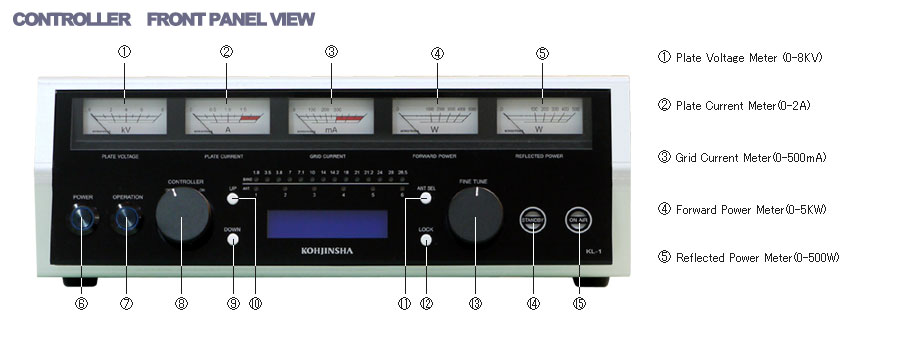

CONTROLLER FRONT PANEL VIEW
EPOWER SWITCH
This switch toggles ON/OFF the power for whole system.
ON: Blue color indicator around the switch illuminates.
OFF: Blue color indicator around the switch is off.

FOPERATION SWITCH
This switch toggles STBY/OPERATE mode of the amplifier.
When the indicator is illuminating, the amplifier is set to OPERATE mode.
OPERATE mode automatically makes the amplifier to be tuned at the
frequency when you change bands or the amplifier needs tuning,
If the switch is set STBY, nothing happens after you change bands.

G CONTROLLER SWITCH
With this switch ON, antenna switches work while the amplifier is turned off.

H DOWN SWITCH
Each press lets the operating band lower next band.

IUP SWITCH
Each press lets the operating band upper next band.
JANT SEL SWITCH
This switch selects the output connectors on the rear panel.

KLOCK SWITCH
This switch locks ANT SELECT SWITCH.

LFINE TUNE
You can fine tune the best tuning position. Set it center position usually.

MSTAND BY
Under the OPERATE mode, the green lamp illuminate when the tank circuit is tuned properly.

NON AIR
While transmitting, the red lamp is illuminating.

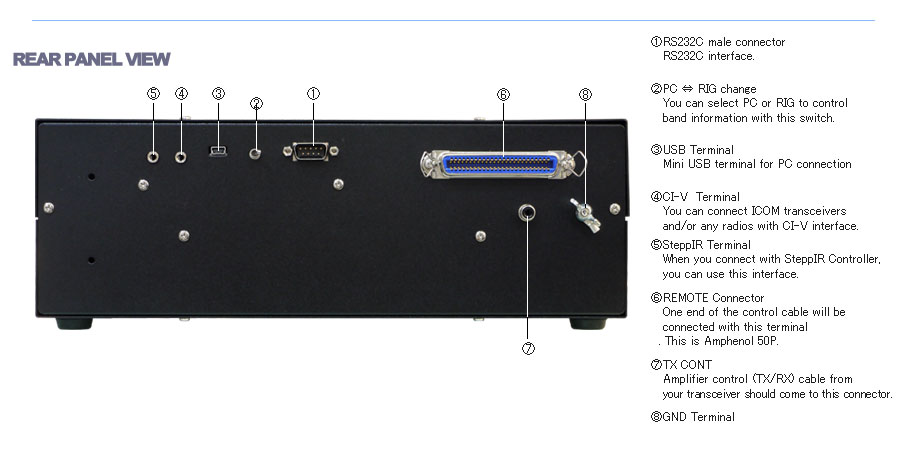

REAR PANEL VIEW

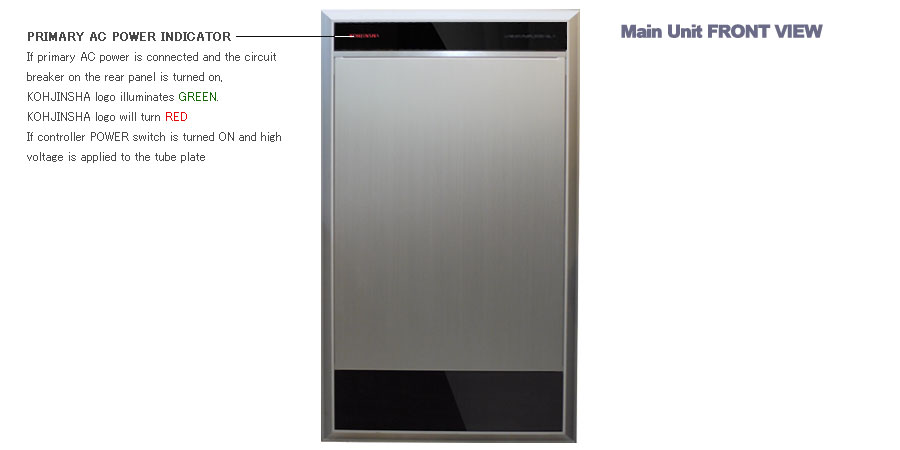

MAINFRAME FROMT VIEW

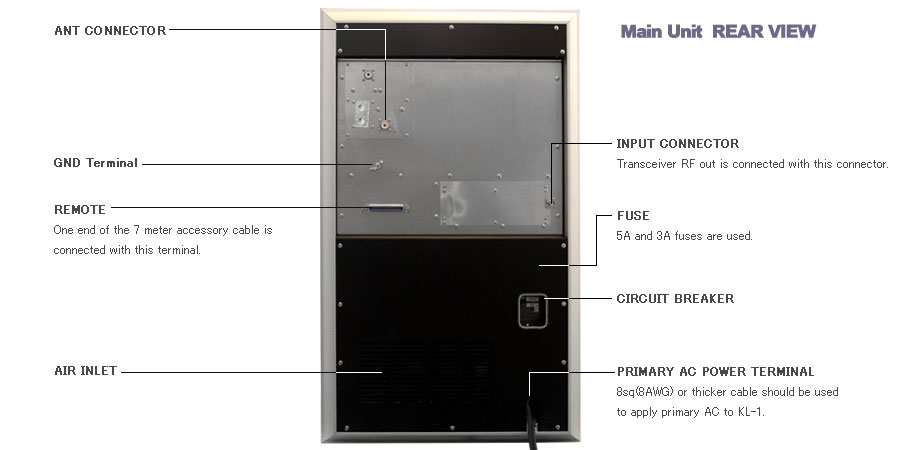

MAINFRAME REAR VIEW
